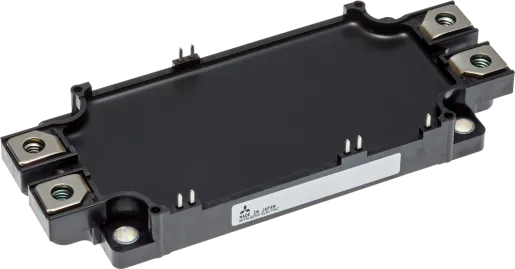

Mitsubishi Electric offers a wide power module lineup that contributes to energy savings and high reliability for industrial equipment. This T-Series device offers low power loss, improved reliability, and simplifies the inverter design process.
- Low Loss Mitsubishi Electric 7th generation CSTBT™ IGBT and RFC Diode technology.
- High reliability and long thermal cycle lifetime due to Solid Cover (SLC) package technology which eliminates the typical large substrate solder layer, a common point of failure.

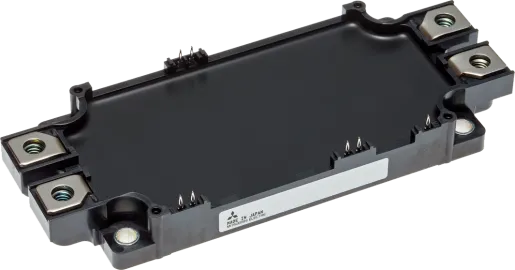

- Solder or Press Fit pin options allow increased flexibility and manufacturability
|Rated Voltage (Vces)/(Vds)||650|
|Rated Current (Ices)/(Ids)||300|
|Package Type||NX Type|
|Package/Dimensions (mm)||62 x 152|
|Package Dimensions (second package option)||62 x 152|
